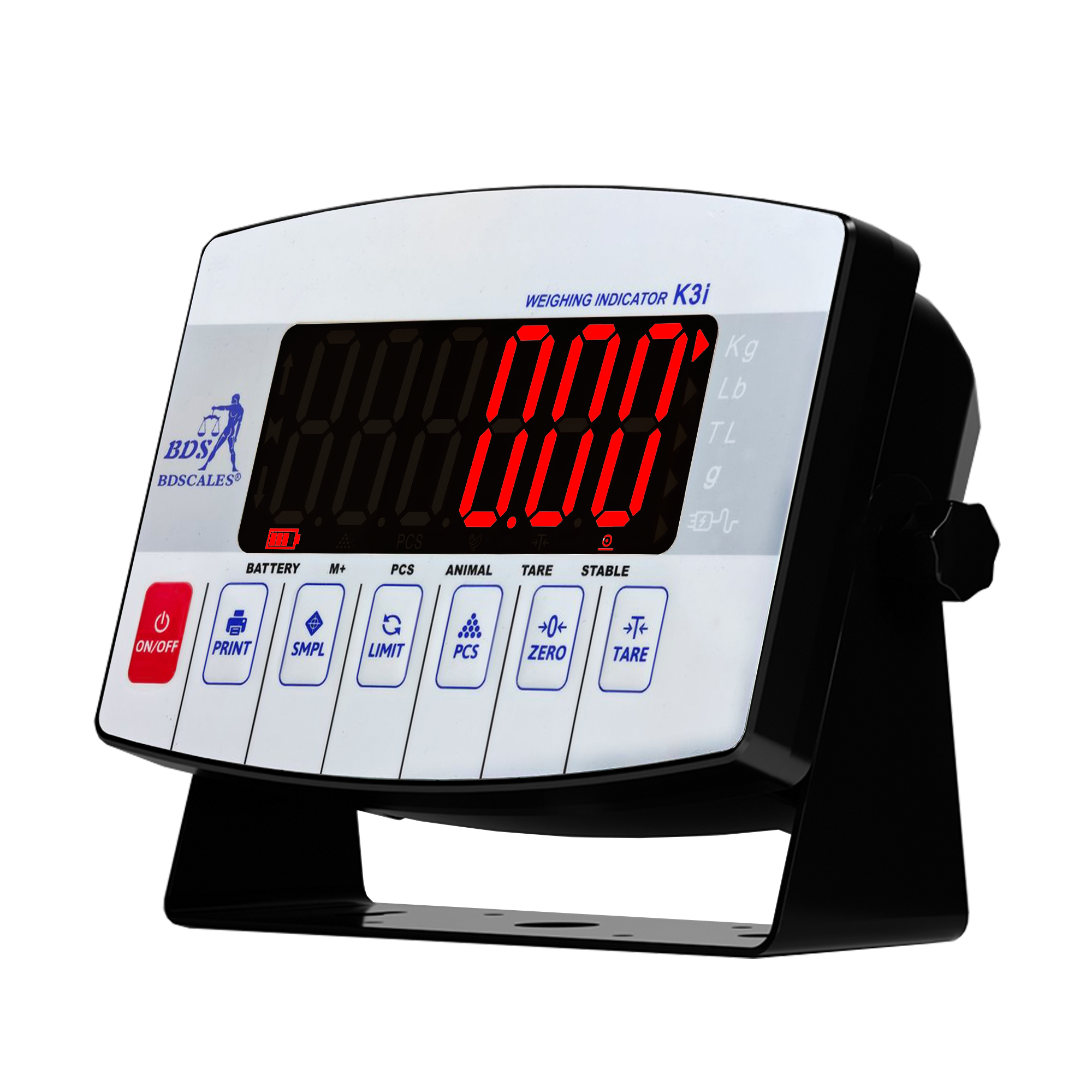

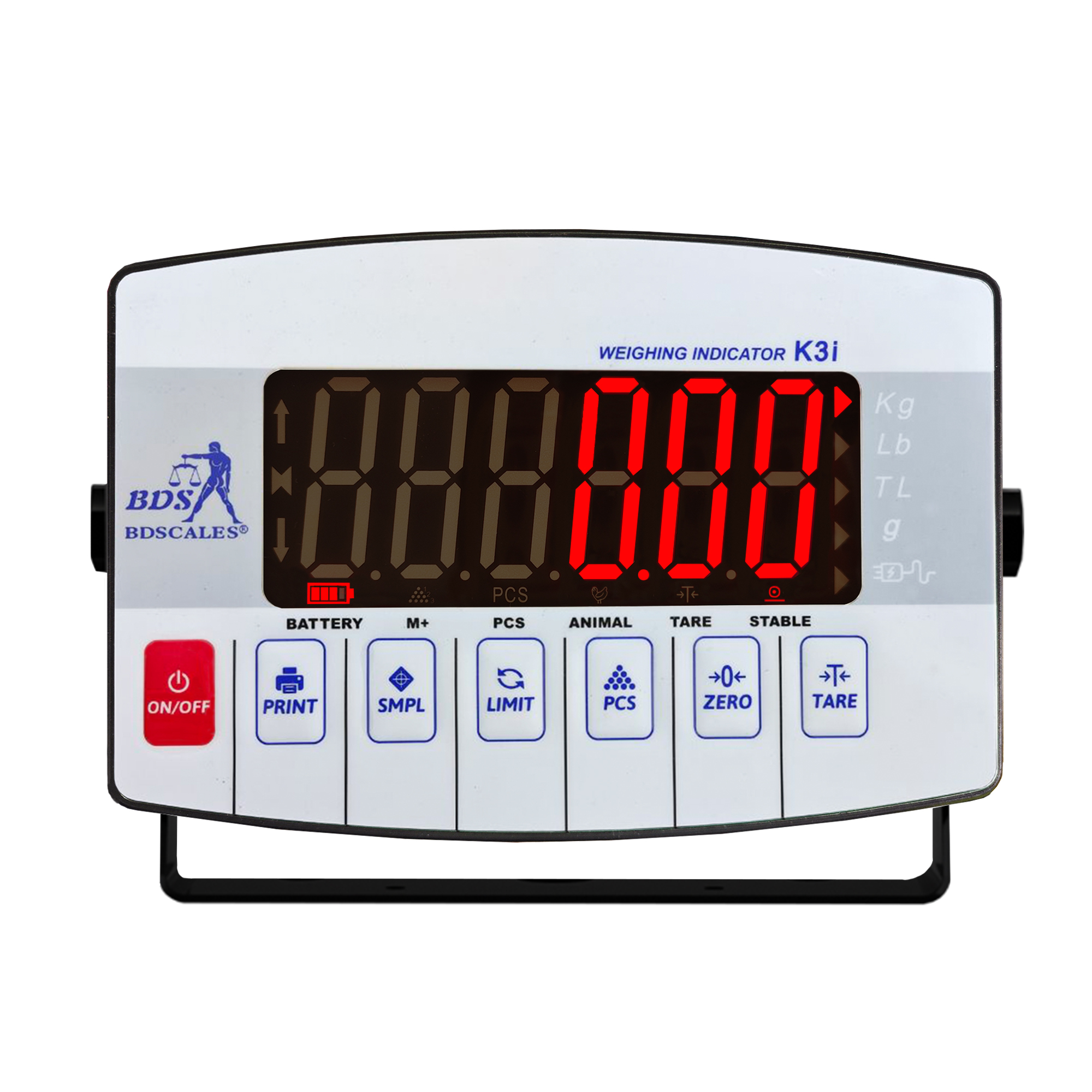

Model: BDS-K3i
Unit: kg/lb/tl/g

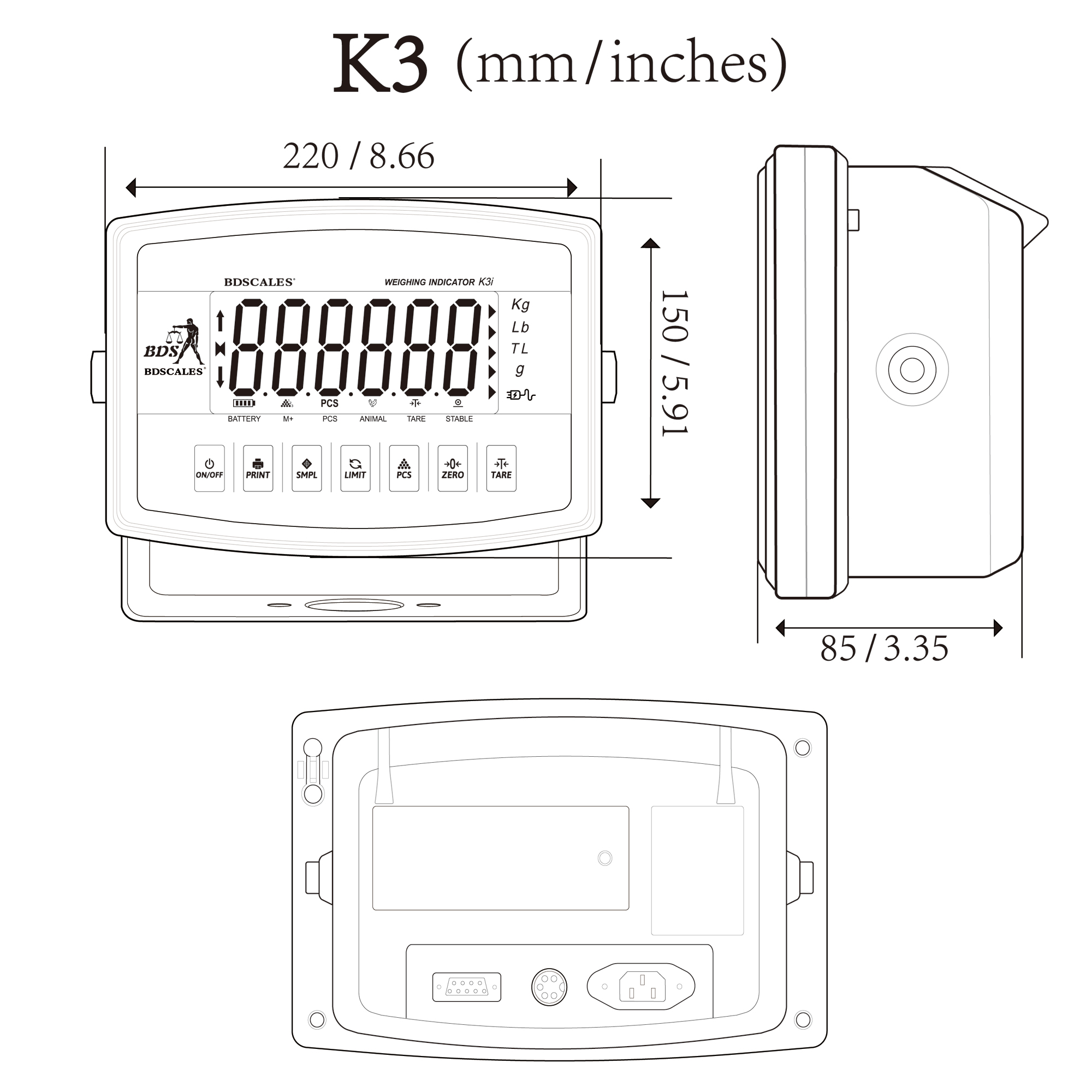

Indicator overall size: 221*152*100mm
Color: white
Power: battery 4V/4ah (Power DC-AC)
Accuracy level: Level 3, n=3000
Sampling speed: 10times/S
Division value: 1/2/5/10/20/50 optional
Display Resolution: 1/999999
Internal Resolution: 1/100000
WorkingTemperature: -12~64℃
Relative humidity: 45-55%Rh
RS-232: baud 4800 9600
Load Cell Quantity : 8*350 Ω
Packing: 8pcs/cartons 14kg
A weighing indicator is an electronic device used to measure, display and process weight signals.
It is usually used in conjunction with a weighing sensor to convert the weight signal detected by the sensor into a readable analog display, and has data processing, transmission and control functions.
Weighing meters are widely used in industry, commerce, laboratories and other fields, and are the core component of weighing systems.
Main functions of weighing instruments
Weight measurement: Accurately measure the weight of an object.
Data display: Display the measurement results in an analog manner.
Unit conversion: Supports switching between multiple weight units (such as kg/lb/tl/g, etc.).
Data storage and transmission: Stores measurement data and transmits it to other devices (such as computers, printers, etc.) through the RS232 interface.
Alarm function (upper and lower limit function): When the weight exceeds the set range, triggers an audible and visual alarm or outputs a control signal.
Anti-Vibration Function: Animal weighing function.
Integrated power board:
The power board is integrated directly inside the weighing instrument, and no external charger is required.
Reduces the complexity of external cables, making the device neater and easier to install.

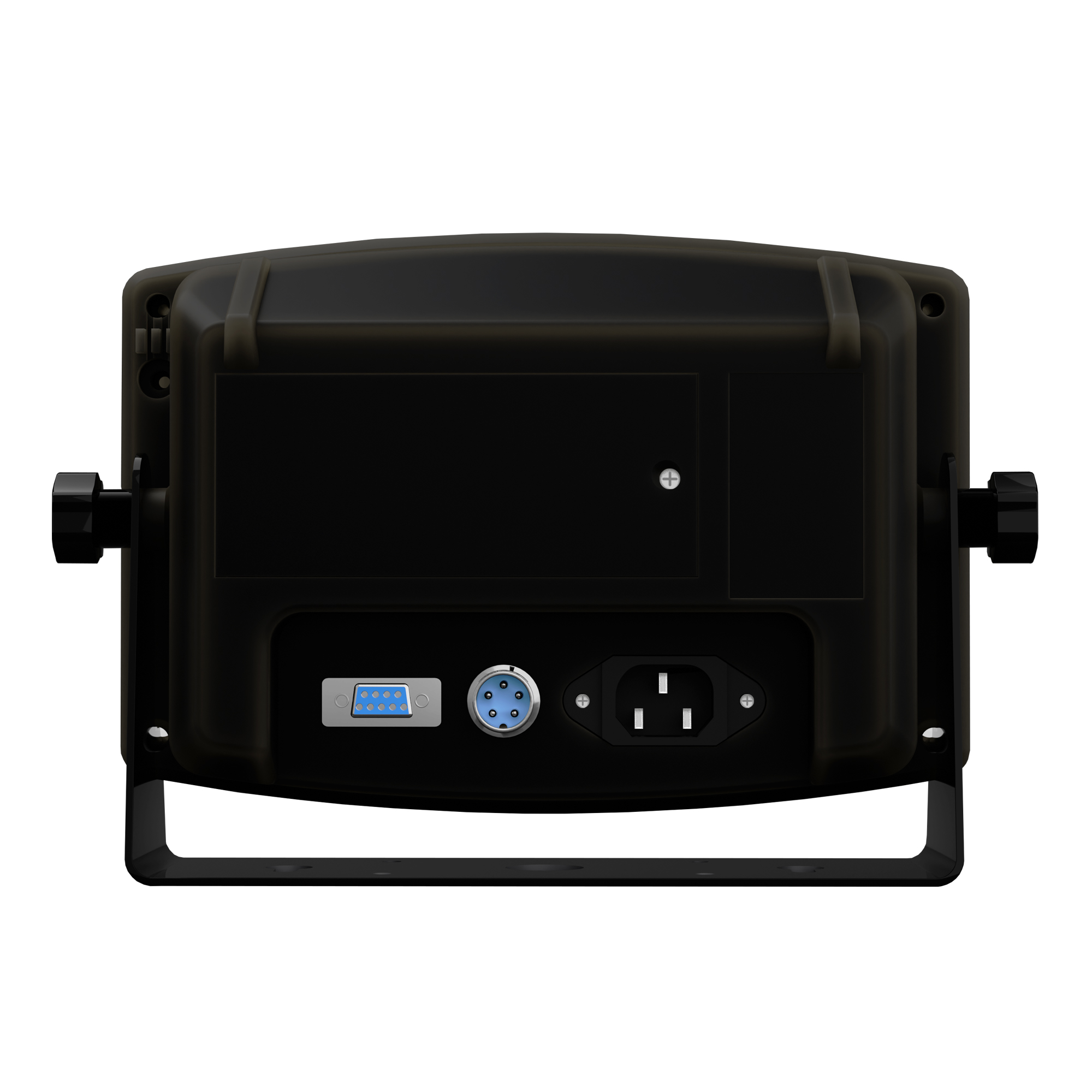

IEC Connector design:
The IEC connector is a common power interface with strong compatibility and can be directly plugged into a standard power socket.
It is easy to use and suitable for many occasions, especially in industrial environments.
No charger required:
The device is powered directly by the power cord, and no additional charger is required.
Save costs while reducing the risk of accessories being lost or damaged.
Weighing instruments are suitable for many industries and can be used with platform scales, small floor scales, forklift scales, wheelchair scales, animal scales, etc.
For example, chemical/food ingredients, quality inspection on production lines, automated packaging equipment sorting, express freight industry logistics weighing, animal weighing, breeding industry, agricultural product weighing, environmental protection garbage plants, weighing patients in hospital, etc.
BDS-K3i is a cost-effective weighing indicator. You can also choose a version with a time chip inside (K3T), which can be connected to a printer with time and date display. In addition, its zero return speed, accuracy and stability are better.
We are a factory and can also support customized OEM production.
FAQ
1. Why choose us?
We have 18 years experience in weighing scale production.
Service: we have professional production、 sales、 after-service one step.
Since its establishment, the advanced production technology and good quality the scales have passed the certifications of CPA、 CE、ROHS, etc. It is a collection of R&D、 production、 sale and service.
2. What is the MOQ?
We emphasize long-term cooperation, so we can build trust from the trial order. Once we start to cooperate, you can experience our high-quality service no matter whether your order is large or small.
3. Can l add my logo on the scales?
Yes, OEM is available for us.
4. What is your acceptable payment method?
100%T/T, L/C at sight, Western Union are all accepted by us.
5. What is your delivery time?
2-5 days for ready-to-ship products.15-25 days for customized products.
6. How long are your warranty terms?
Our Warranty term is a-12 month guarantee, will continue to provide after-sales service later.
7. How about the shipping?
We can provide international Express door-to-door、 Airline and Sea transportation You can choose the way of transportation you are satisfied with, and different shipping ways have different shipping costs.
